METTA electrical panels for sewage pumps are designed for the proper operation and protection of the twin pump assembly, while providing the possibility of full autonomy in control through start-stop float switches.

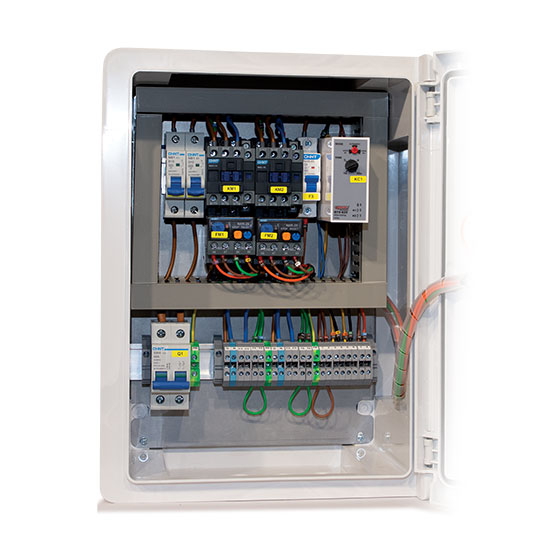

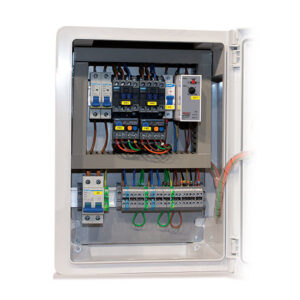

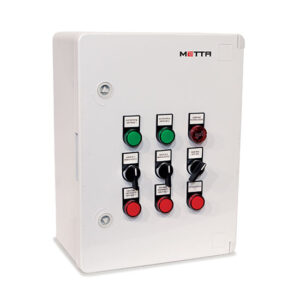

START-UP PANEL FOR TWIN SEWAGE PUMPS 230V WITH DOL START-UP AD2D1___

Plastic watertight enclosure, protection class IP54
General bipolar load switch
Thermomagnetic switch depending on the current drawn by the pump to protect against overload, overcurrent, short-circuit, overload, short-circuit, overcurrent, short-circuit
power starter, one for each pump, for direct starting of the pump
Possibility of connecting capacitors, if required (not included)
I-0-II selector switch for manual or automatic operation, either by means of a self-locking starting float switch and a separate float switch for stopping, or by means of a start-stop float switch
manual operation with start-up independent of the level
Automatic operation by alternating the starting sequence of the pumps at each new operating cycle, and both operating in parallel at rising levels
Indicator lights for operation, failure of each pump
Visual and audible overflow alarm with possibility of deactivation
Connection terminal block accompanied by a wiring

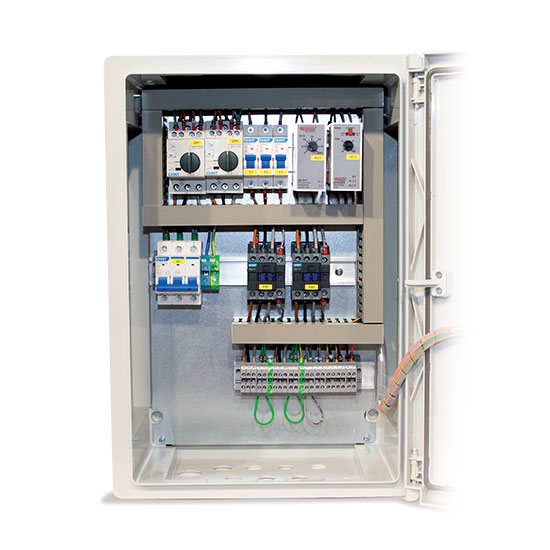

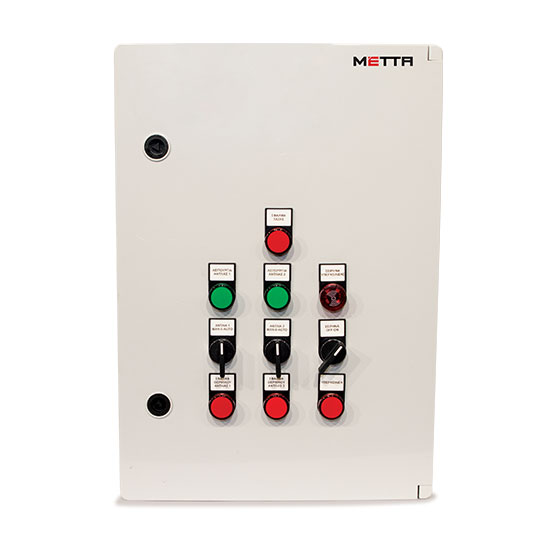

START-UP PANEL FOR TWIN 400V SEWAGE PUMPS WITH DOL START-UP AD2D3___

Plastic watertight enclosure, protection class IP54
General load switch
Voltage, asymmetry, sequence and out-of-phase monitor with adjustable cut-off and reset times
Thermomagnetic circuit breaker, one for each pump sized according to its current consumption for protection against overload, overcurrent, short-circuit, with frontal auxiliary contact
power starter, one for each pump, for direct starting of the pump
Connection terminals for internal heat pumps in series with the control circuit
I-0-II selector switch for manual or automatic operation, either by means of a self-locking starting float switch and a separate float switch for stopping, or by means of a start-stop float switch
manual operation with start-up independent of the level
Automatic operation by alternating the starting sequence of the pumps at each new operating cycle, and both operating in parallel at rising levels
Indicator lights for voltage fault, operation and failure of each pump
Visual and audible overflow alarm with possibility of deactivation
Connection terminal block accompanied by a wiring diagram

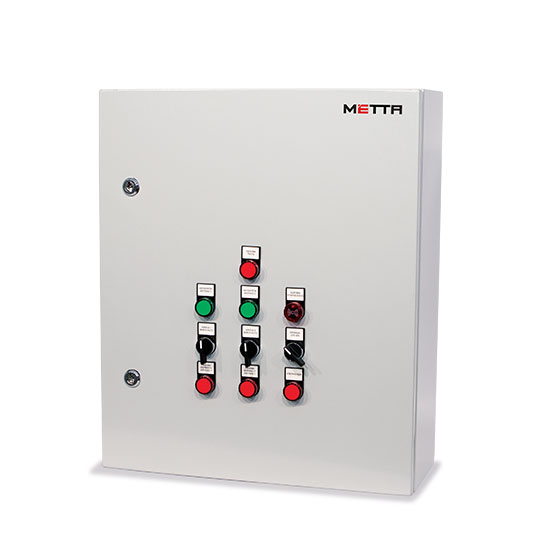

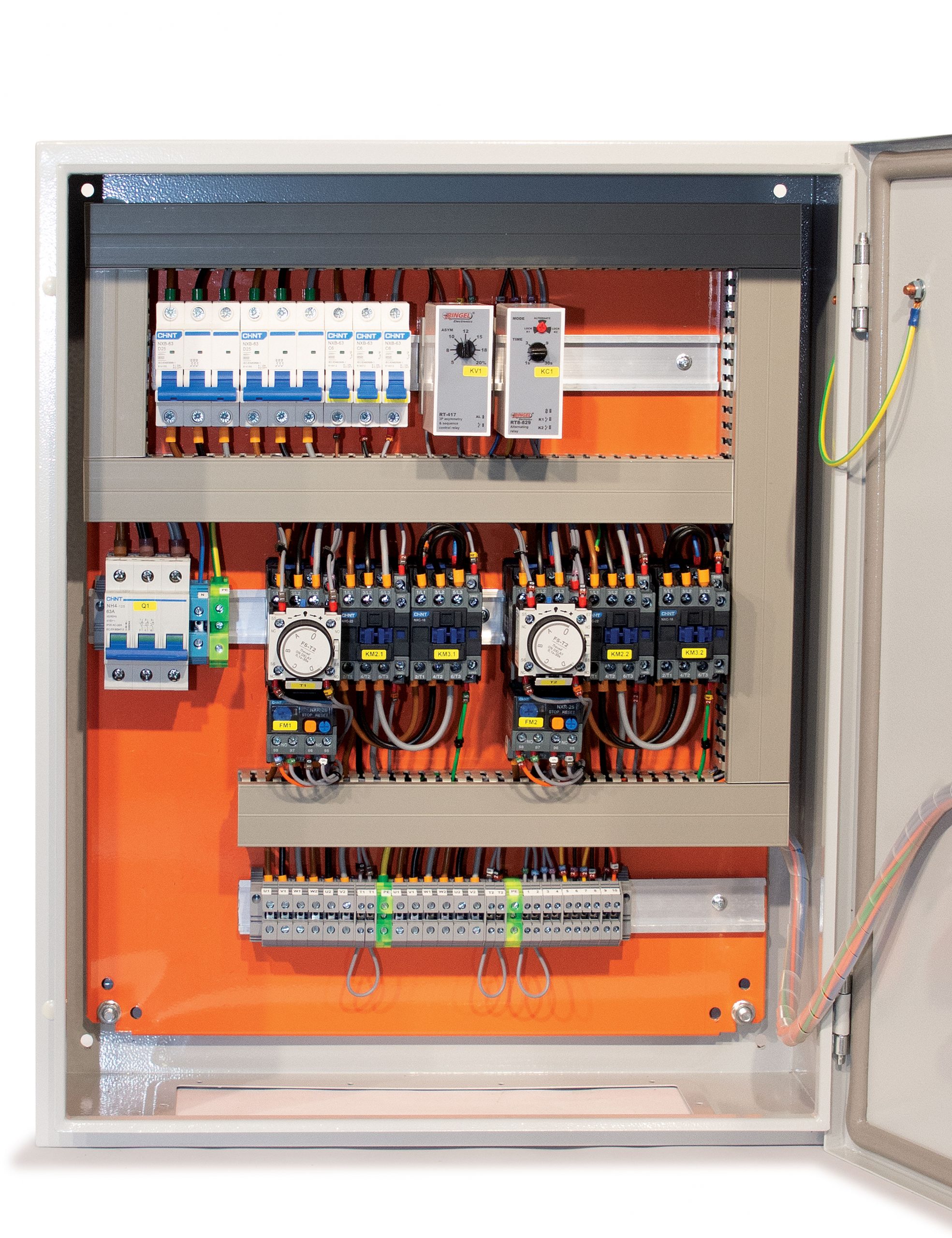

WASTEWATER PUMP 400V STARTING TABLE WITH WATER/SEWAGE PUMP START-UP AD2Y3___

Metal watertight enclosure of protection class IP54
General load switch
Voltage, asymmetry, sequence and out-of-phase monitor with adjustable cut-off and reset times
Automatic ‘K’ curve fuses, combined with thermal relay, suitable for motor protection against overcurrent, short circuit and overload or alternatively, thermomagnetic circuit breaker
a VSD starter, one for each pump, sized according to the pump capacity
Connection terminals for internal heat pumps in series with the control circuit
I-0-II selector switch for manual or automatic operation, either by means of a self-locking starting float switch and a separate float switch for stopping, or by means of a start-stop float switch
manual operation with start-up independent of the level
Automatic operation by alternating the starting sequence of the pumps at each new operating cycle, and both operating in parallel at rising levels
Voltage, operation and fault indicators for each pump
Visual and audible overflow alarm with possibility of deactivation
Connection terminal block accompanied by a wiring diagram

CODE	ADDITIONS
F	Free voltage contacts for operation, fault and “AUTO” status indication for each pump, as well as for overflow indication (for panels AD2D1___)
F	Free voltage contacts for operation, fault and “AUTO” status indication for each pump, as well as for voltage and overflow fault indication (for AD2D3___ and AD2Y3___ panels)
M	3-display instrument with voltage transformers
Η	Permanent visual notification of a parallel operation error. In the event of an undetectable failure of a pump, and to avoid the phenomenon of only one pump operating without fault indication, a visual warning of simultaneous malfunction is activated for both pumps
P	Protection against dry operation via drilling power factor (cosφ) without Autoreset
A	12VDC power supply with battery connection for self-activation of the overflow alarm
C	Battery for overflow alarm autonomy 12VDC/3.2Ah
Χ	Reinforced universal socket
Ε	LED interior lighting

Control and automation panels for starting a wide range of rainwater/wastewater pumps.
Start-up of a twin pump assembly.
Protection against dry running of pumps by means of a float switch in the event of drainage of the pumping tank.
Start-up of the pumps by means of point level or adjustable differential level float switches with counterweight.
Visual and audible alarm of overflow of the pumping tank

START-UP PANELS FOR 2 RAINWATER/SANITATION PUMPS
Type	Voltage	Hp	KW	Start-up	Range A	Box material	Protection	Dimensions H x W x D (mm)
AD2D1007	230V	1	0,75/1,1	DOL	4-6,3	ABS	IP54	500x400x180
AD2D1011		1,5	1,1/1,2		6,3-10			500x400x180
AD2D1015		2	1,5/1,7		6,3-10			500x400x180
AD2D1022		3	2,2		10-16			500x400x180
AD2D3007	400V	1	0,75	DOL	1,6-2,5	ABS	IP54	500x400x180
AD2D3011		1,5	1,1		2,5-4			500x400x180
AD2D3015		2	1,5		2,5-4			500x400x180
AD2D3022		3	2,2		4-6,3			500x400x180
AD2D3030		4	3		6,3-10			500x400x180
AD2D3040		5,5	4		6,3-10			500x400x180
AD2Υ3055	400V	7,5	5,5	Υ/Δ	10-16*	METAL	IP54	600x500x200
AD2Υ3075		10	7,5		10-16*			600x500x200
AD2Υ3110		15	11		18-22			600x500x200
AD2Υ3150		20	15		28-32			600x500x200
AD2Υ3185		25	18,5		35-39			700x500x200
AD2Υ3220		30	22		35-41			700x500x200
AD2Υ3300		40	30		52-61			800x600x200
AD2Υ3370		50	37		65-75			800x600x200

The AD2Y3__ series uses a fuse with a thermal switch except for the asterisks where a thermomagnetic fuse is used.

Construction with ABB main materials
